Glass Flake Lining

Corrosion Protection with Glass Flake lining
Synthetic resin coatings & glass flake linings have proved highly successful inprotection against corrosion.
This system is selected based on their specific protective performance & cost. Industrial flooring systems need to have very special properties matched to the intended application. Floorings used, for instance, in the food, chemical, pharmaceutical, beverage, automotive or electrical industries need to meet a wide range of requirement.

Concrete floor Protection Work includes furnishing lining materials and proper installation service for the performance of concrete surface protection.



MATERIAL CODE CHARACTERISTIC USES
Heavy Duty Reinforced Epoxy Lining 6310E POLKRET Resistance against  aggressive  media  like  Sulphuric Acid, HCL, Salts, Alkalis  & other chemical  media  at elevated   temperature. It is applied  to protect  steel  substrates,  Concrete  Floors exposed  to chemicals,  Tanks, Drains, Foundation,  Sumps, Waste Water  Treatment   Basins, Chemical  Process  Floors
Glass Flake Epoxy Lining 6400F POLKRET Resistance   to alkalis,  inorganic  acids, many aromatic  and aliphatic  solvents,  crude oil, aviation  fuels etc. Structural  steel,  Piping, Tanks, Equipment  in chemical,  paper, marine  and petroleum   facilities.  May also be used as a light duty lining in water  or mild chemical  solution.
Heavy Duty Reinforced Vinylester Lining 8310R POLKRET Excellent     resistance against  aggressive  media  like  Sulphuric Acid, HCL, Salts, Alkalis  & other chemical  media  at elevated temperature. It is applied  to protect  Concrete  Floors  exposed  to chemicals, Tanks, Drains, Foundation,  Sumps, Waste  Water  treatment Basins, Chemical  Process  Floors
Heavy Duty Novolac Vinylester Lining 9310 POLKRET Resistance against  aggressive  media  like  some organics, solvents, high concentration   of Sulphuric Acid, HCL, & other chemical  media  at elevated   temperature. It can be applied  to Concrete  Floors  exposed  to chemicals, Tanks, Drains, Foundation & Sumps, Basins etc.
Heavy Duty Novolac Vinylester Glass Flake PE18F FLAKELINE Recommended   for protection  against  wide range  of acids, solvents,  and mild alkali  solutions and organic  chemicals.  It resists strong inorganic  acids  such as hydrochloric acid or Sulphuric acid up to 75% concentration   in immersion service.Flake   lining can resist chemical  fume conditions to 125 ° C One of the important  applications  of PE18F is for coating of structural  components  in Flue gas desulphurization plants, raw gas & cleans  gas ducts, chimneys  and heat exchangers,   tanks, absorption towers,  vessels  etc for power generation   plants & chemical  industries.
Heavy Duty Epoxy Novolac 2000 MR FLAKELINE Designed  to protect  concrete and metal  against chemical  attack from aggressive  chemicals  including 98% sulfuric acid and  oleum. Chemical  storage  & process  vessels, Floor & chemical trenches  in process  areas,  Secondary  containment  areas,  Truck loading & unloading  areas,  Pedestals  of chemical  pumps, Surfaces  exposed  to chemical  spillage/fumes.
Heavy Duty Vinylester 8420 POLKRET resistance  to inorganic  acids  like Sulphuric  Acid, HCL 35%, Chlorine Dioxide solution, Salts, Alkalis  & other chemical  media at elevated   temperature. It is applied  to protect  Tanks,  Process Vessels, Clarifiers, incineration  plants, Chemical  Process  equipment  that handle corrosive liquid. Concrete  Floors exposed  to chemicals  & Slurry,  for example  Drains, Foundation,  Sumps, Waste Water Treatment   Basins etc.  where  heavy  duty protection  is called for.
Heavy Duty Novolac Vinylester reinforced 9420 POLKRET resistance  to inorganic  acids  like Sulphuric  Acid up to 75%, HCL 35%, Chlorine  Dioxide solution, & other chemical,  media at elevated   temperature.   It is also resistant  to various  solvents, organic  chemicals  & mild alkali  solutions. applied  to protect  Reaction  towers,  Absorption  Towers, Process Vessels,  Acid storage  Vessels, Chemical  Process equipment  that handle corrosive  liquid.It  is als o applied  to protect  Concrete  Floors  exposed  to aggressive  chemicals  & Slurry where  heavy duty protection  is called  for.
Abrasion Resistant Hea vy Duty Vinylester reinforced 8600AR POLKRET abrasion  resistant  ingredients   and shows excellent   resistance  to wear  and against aggressive  media like  Sulphuric Acid, HCL, Salts, Alkalis  & other chemical  media  at elevated   temperature. It is applied  to protect  Tanks,  Process Vessels, Clarifiers, Chemical  Process equipment  that handle abrasive  slurry or sand mixtures.It  is als o applied  to protect  Concrete Floors exposed  to chemicals,  Slurry,  like Drains, Foundation,  Sumps, Waste Water  Treatment   Basins etc.

Project Documentation

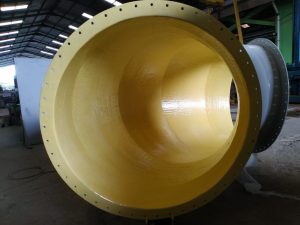

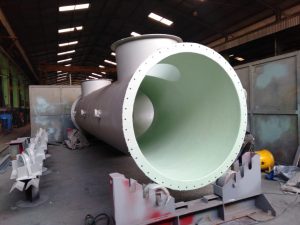

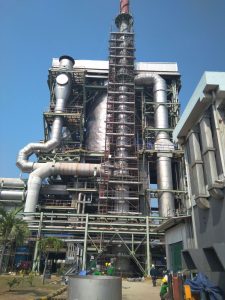

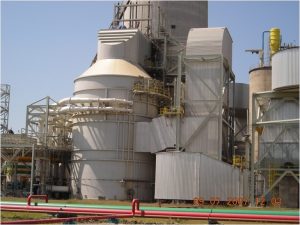

The following photos show examples of completed glass flake lining installations and applications performed by PT. Polyline Technologies.
